Hercules (marine) Engine Rebuild Parts
Quite possibly the largest stock of Hercules motor rebuild parts
For Chris-Craft converted inboard engines.
Most stock limited so check
first.
Orders (815)344-9663
Chris-Craft K or
Hercules QXD
Pistons:
.060 $399 set
Main
bearings: .010 $199
Rod
bearings: .010, .020 .030, and .040 $180
Copper
head gaskets $109
Gasket
set with Copper head gasket $299
Motor
mounts $59ea
Valves
$20ea
Valve
guide $8.99
Valve
spring 46043A $7
Engine
Paint $15.95can
Cylinder
head studs 3 7/8 130000PSI $7.00
Tall
nuts 7/16 or 11/16 $1.50
Correct 9/16 tall head nuts $4.99
Cam
bearings $39
Chris-Craft
KL, KLC, KBL, KFL or Hercules QXLD
Pistons
with rings .030, .060 $399set
Main
bearings: .010 $199
Rod
bearings: .010, 020 .030, and .040 $180
Copper
head gaskets $109
Gasket
set with Copper head gasket $309
Motor
mounts $59ea
Valves
$20ea
Valve
guide $8.99
Valve
spring 46043A $7
Engine
Paint $15.95can
Cylinder
head studs 3 7/8 130000PSI $7.00
Cylinder
head stud 4 ½ for water outlet $OUT
Tall
nuts 7/16 or 11/16 $1.50
Correct
9/16 tall head nuts $4.99
Cam
bearings $39
Chris-Craft
M or Hercules JXD
NOS
Zollner 167 Pistons: .020 .040 $499/set with rings
Main
bearings: .010, $199 $229 STD and .040 $249
Sometimes
we have main bearings in .020,.030 and .040 CALL!!
Rod
bearings: .010, .020, .030, .040 $180
We Sometimes
have rod bearings in .050 and.060 $199!!
Steel
head gasket $99
Copper
head gasket $129
Gasket
sets $309 W/Steel
Gasket
sets $329 W/Copper
Motor
mounts $69ea
Valves
$20ea
Valve
guide $12
Valve
springs 140018 $7ea
Engine
Paint $15.95 spray can
Cylinder
head studs 3 7/8 130000PSI $7.00
Tall
nuts 7/16 or 11/16 $1.50
Correct
9/16 tall head nuts $4.99
Cam
bearings $39
Chris-Craft
ML, MBL, and MCL or Hercules JXLD
Pistons:
.030 $499 set W/rings
Main
bearings: .010, $199 .040
$249
Sometimes
we have main bearings in .020, .030, .050 and .060 CALL!!
Rod
bearings: .010, .020, .030, .040 $180
We
have rod bearings in .050 and Sometimes .060 $199!!
Steel
head gasket $99
Copper
head gasket $129
Gasket
sets $309 W/Steel
Gasket
sets $329 W/Copper
Motor
mounts $69ea
Valves
$20ea
Valve
guide $12
Valve
springs 140018 $7ea
Engine
Paint $15.95 12oz spray can
Cylinder
head studs 3 7/8 130000PSI $7.00
Tall
nuts 7/16 or 11/16 $1.50
Correct
9/16 tall head nuts $4.99
Cam
bearings $39
MISC
parts
HERCULES
IXB cam bearings $49
Generator
pulleys $75
Engine
tags $50
Carbs
Heads
Water
pumps
Fuel
pumps
Tune
up parts
Spark
plug wires
Choke
cables
Tach
cables
TONS
of used parts
Victor
1735
Victor
1838
Victor
1980
Victor
3101
Victor
3159
Email
finewoodboats@finewoodboats.com
with needs.
Pricing
in photo is old

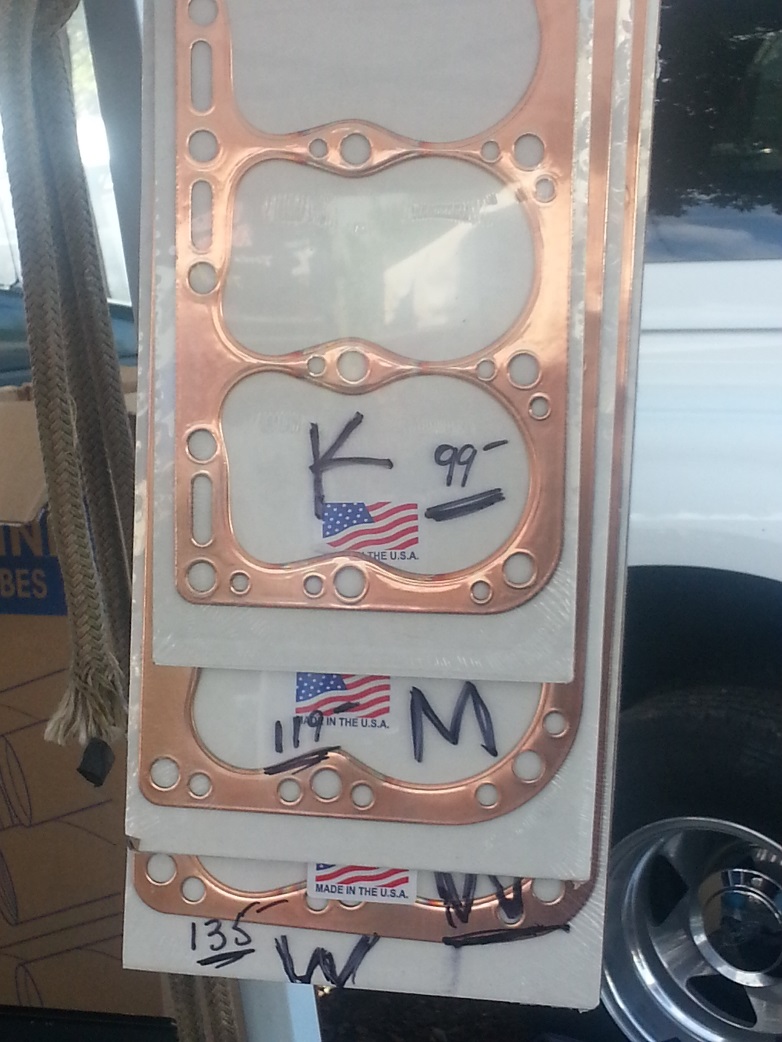

Hercules QXD/QXLD copper head
gasket for Chris-Craft K
Series $109
Hercules JXD/JXLD copper head
gasket for Chris-Craft M
Series $129

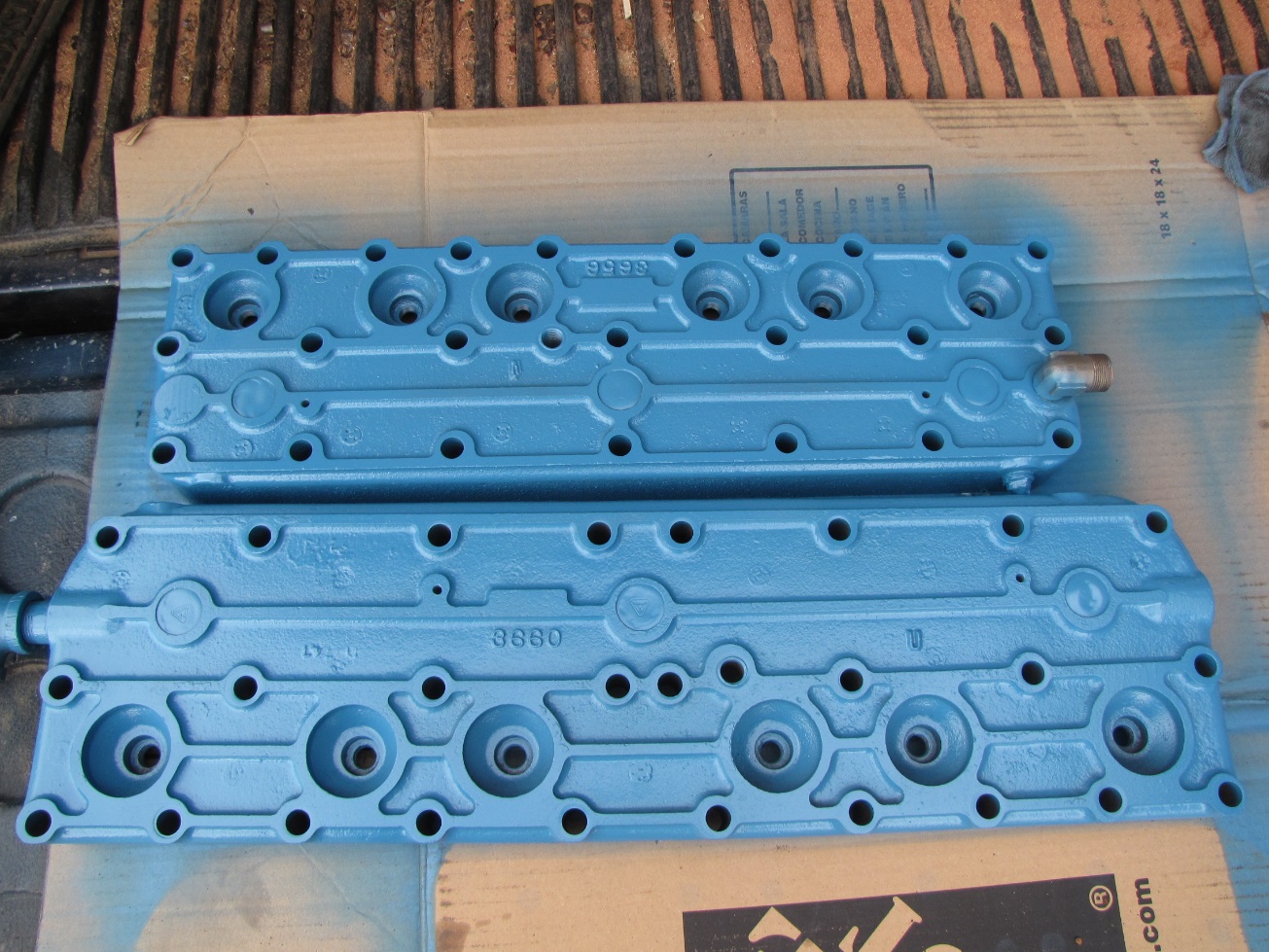

Hercules WXC WXLC WXLD Chris-Craft W $145 Cylinder heads. Magnafluxed and surfaced
K series $350 M $399
Hercules JX and QX high
volume (7 bolt) oil pump rebuild kit in cosmoline $89

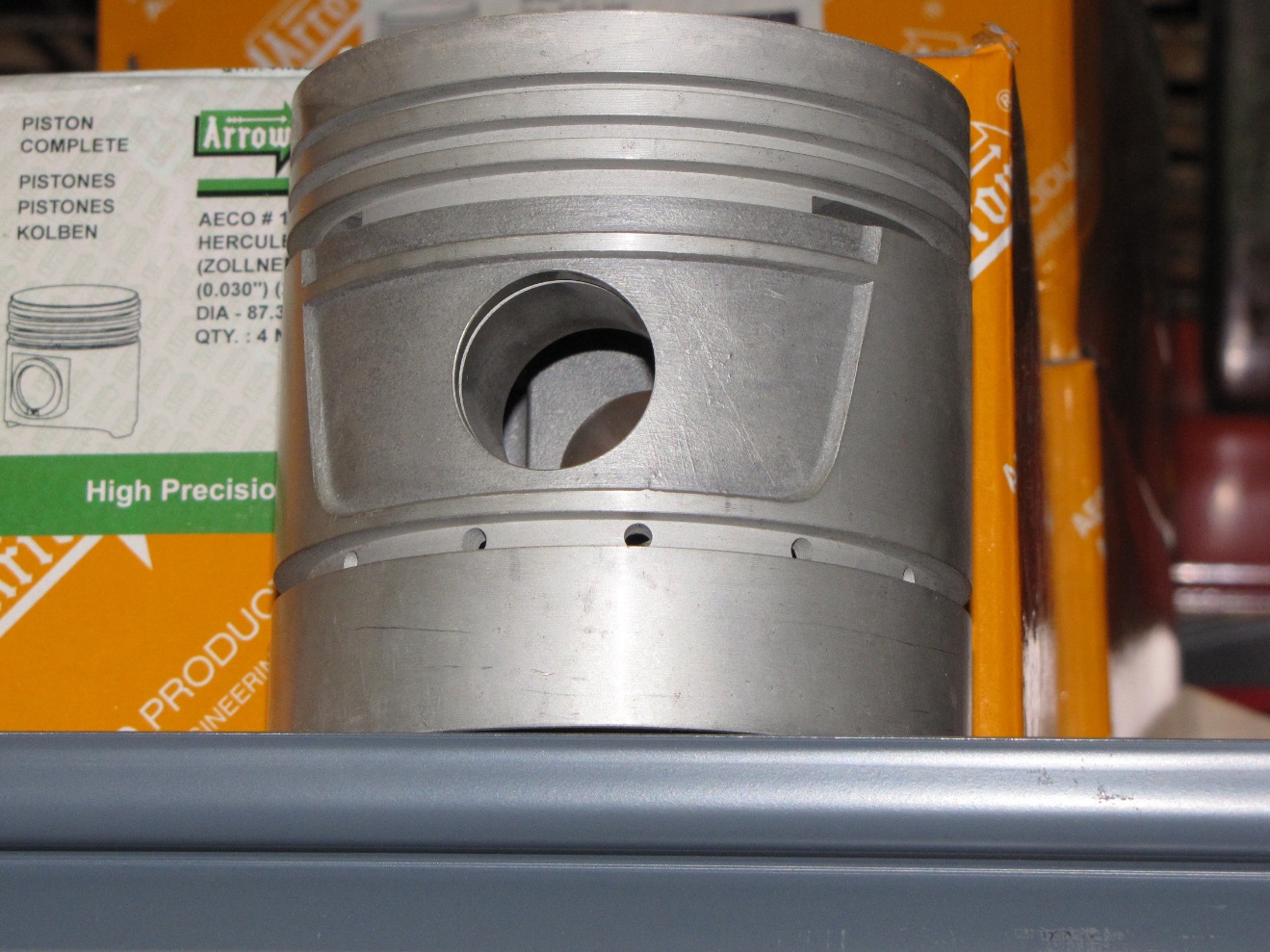

Pistons with rings:
NOS Zollner 167 pistons in
.020 and .040 as used in Ford M8, M20 armored cars, Studebaker Deuce and a
half, Westinghouse Anti-Aircraft lights and most units powered by the Hercules
JXD. $499 set with rings.
Chris-Craft KL, KLC, KBL, KFL Hercules QXD and QXLD pistons with rings .030 and .060 $399set K in .060 only
(slot goes away from camshaft) These run a bit large, wait till you have them to hone.
Chris-Craft
ML, MBL, MCL Hercules JXLD pistons with rings .030 $499 set
Zollner
155 .030 pistons for Hercules WXC $399set

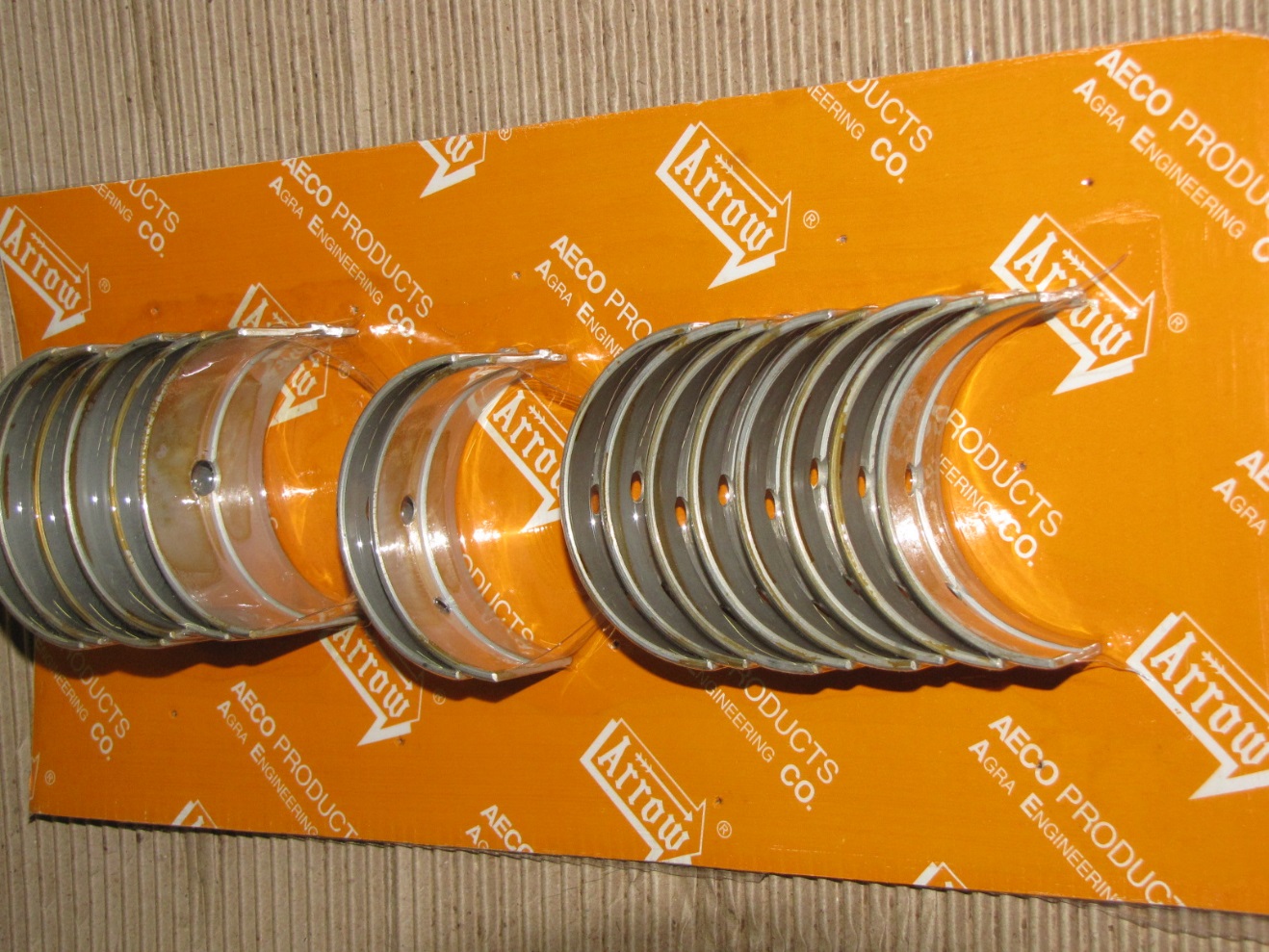

STD
main bearings for Hercules WX series
Arrow .010 main bearings $199 set
Main
bearings do not come with thrust washers, you
Have
to re-use your old ones. Request Arrow

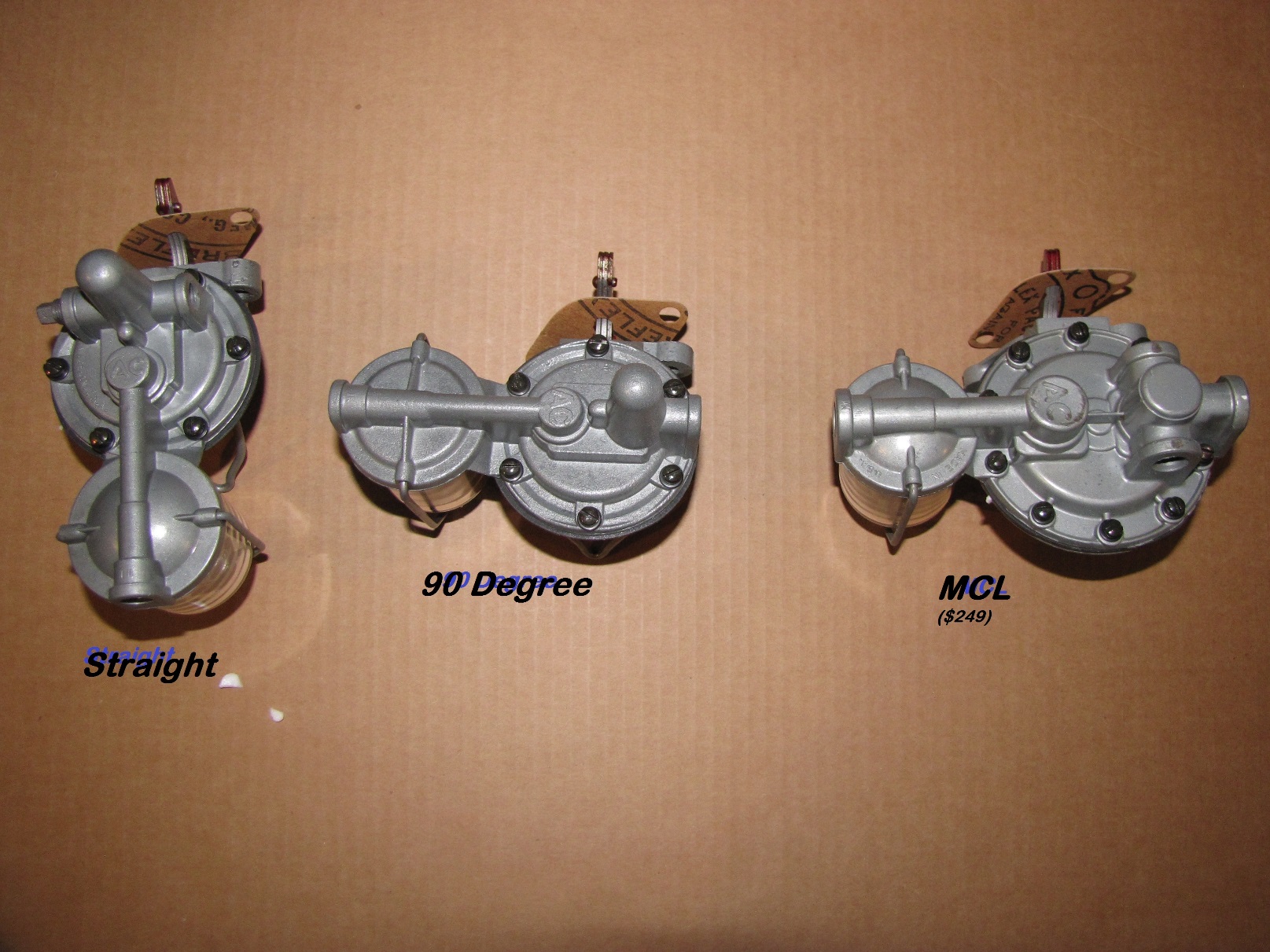

Fuel
pumps $195-249 Exchange

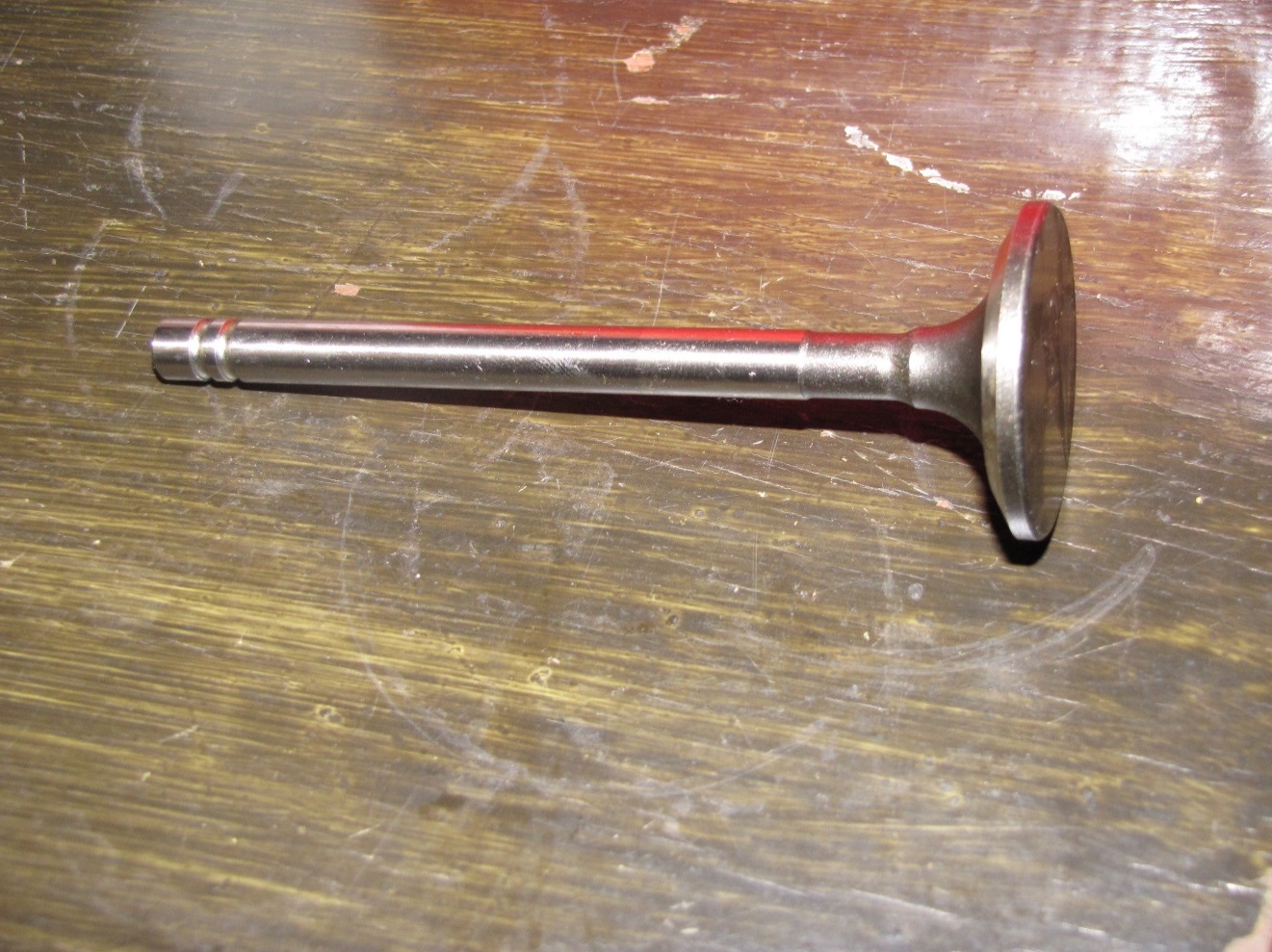

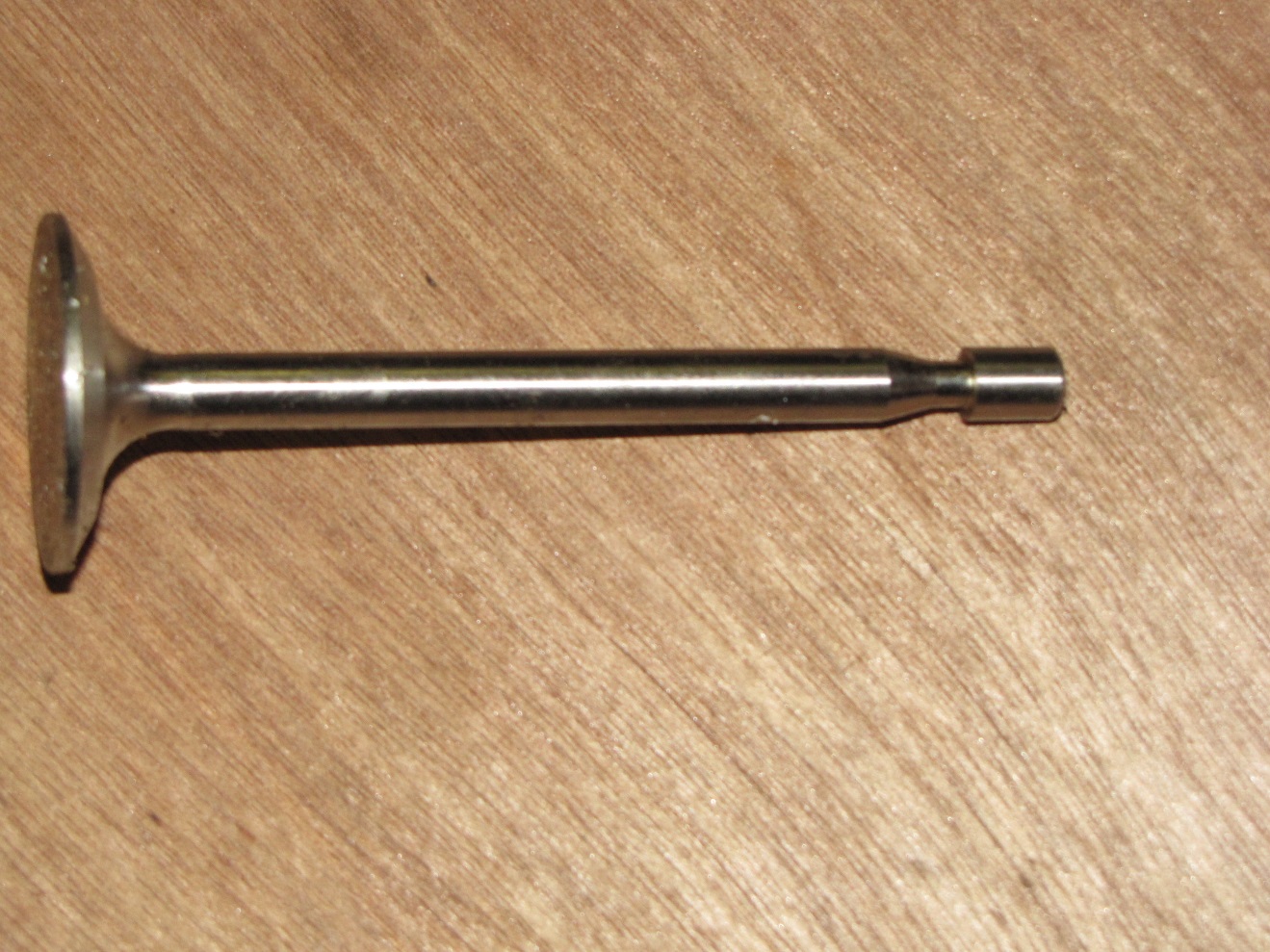

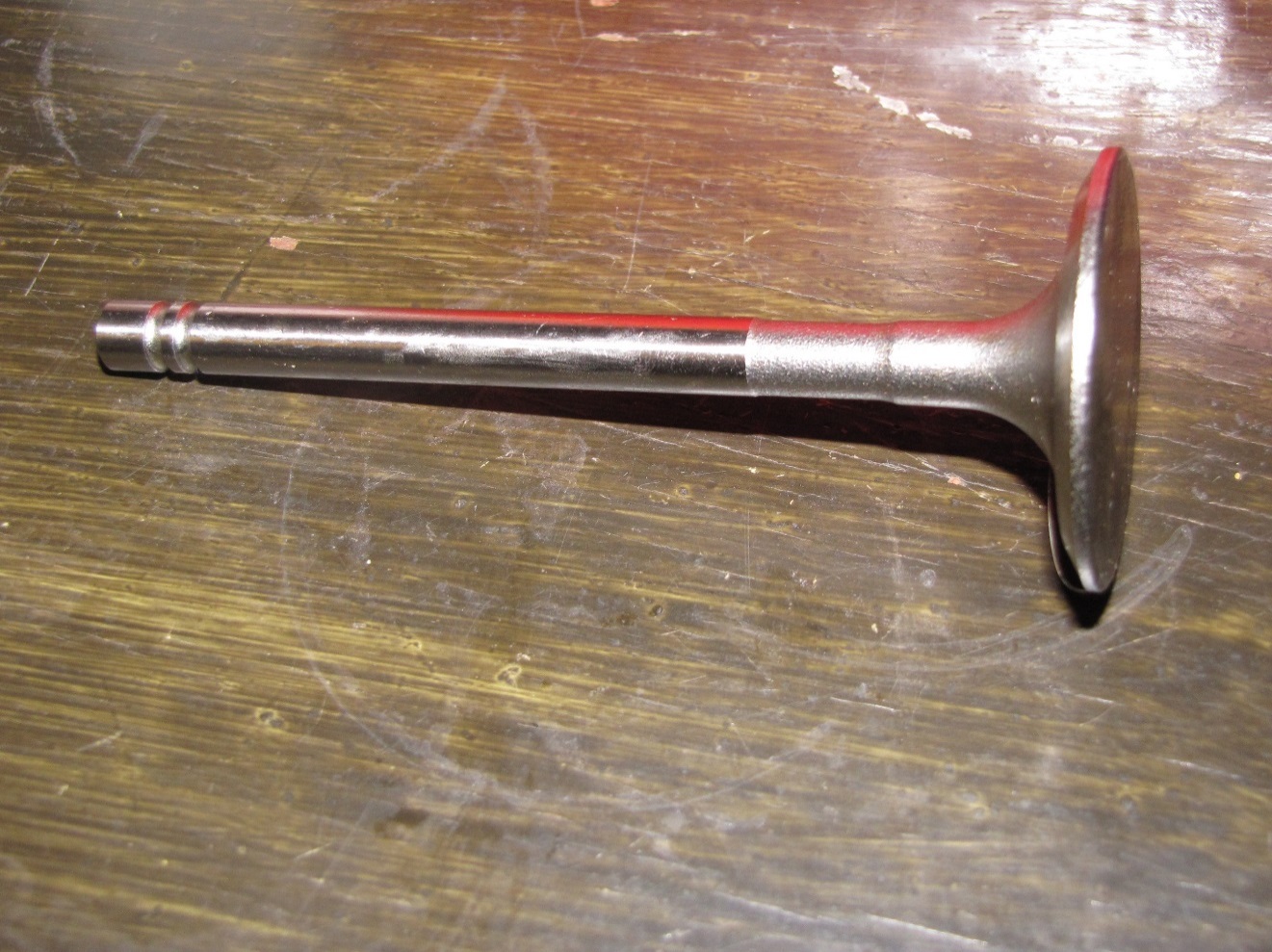

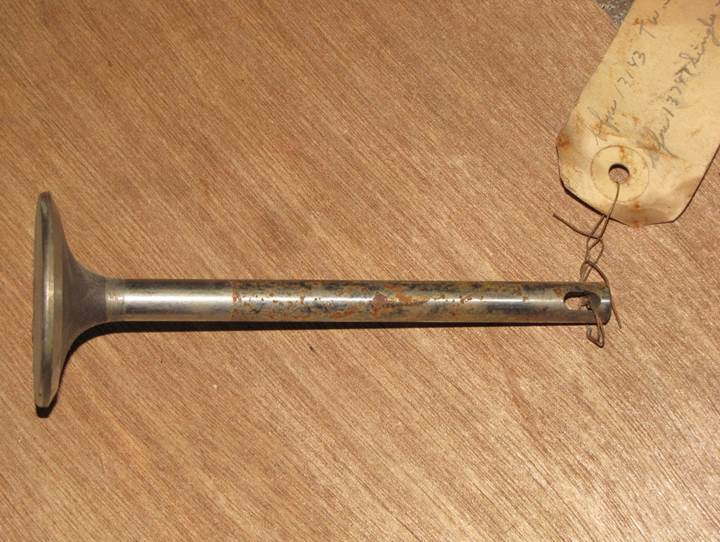

Chris-Craft and Hercules replacement valves $20ea:
Chris-Craft
K series intake valve 47017
.310 stem 1.645 head 4.298 length Hercules QXD and QXLD
Chris-Craft
K series exhaust valve 48036
.310 stem 1.44 head 4.262 length
Hercules QXD and QXLD
Chris-Craft
K series exhaust valve 47028
.310 stem 1.417 head 4.340 length
Hercules QXD and QXLD
Chris-Craft
K series intake valve 46120a
.310 stem 1.485 head 4.300 length
Hercules QXA, QXB, QXC, QXD and QXLD
Chris-Craft
M series intake valve 43018 .372 stem 1.835 head 5.165 length Hercules JXD and
JXLD
Chris-Craft
M series exhaust valve 43072A .373 Stem 1.677 head 5.035 length Hercules JXD
and JXLD
Chris-Craft
M series exhaust valve 43016 .373 Stem 1.675 head 5.028 length Hercules JXD and JXLD
Chris-Craft
M series exhaust valve 16.10-00011 .373 Stem 1.733 head 5.135 length Hercules JXD
Chris-Craft
M series intake valve 16.10-00012 2384 .373 Stem 1.875 head 5.152
length Hercules JXD
Chris-Craft
B series intake valve 27140
.310 Stem 1.490 head 3.950 length Hercules IXB
Chris-Craft
B series exhaust valve 28212B .310 stem 1.358 head 3.926 length Hercules IXB
Chris-Craft
W series intake valve 21023A .373 stem 1.922 head 5.933 length Hercules WXLD
Measurements
are as close as I could get. Applications are thought to be correct. I do screw
up!!
Rebuilt
Chris-Craft 1823 camshaft for KBL, KLC, and KFL $499
